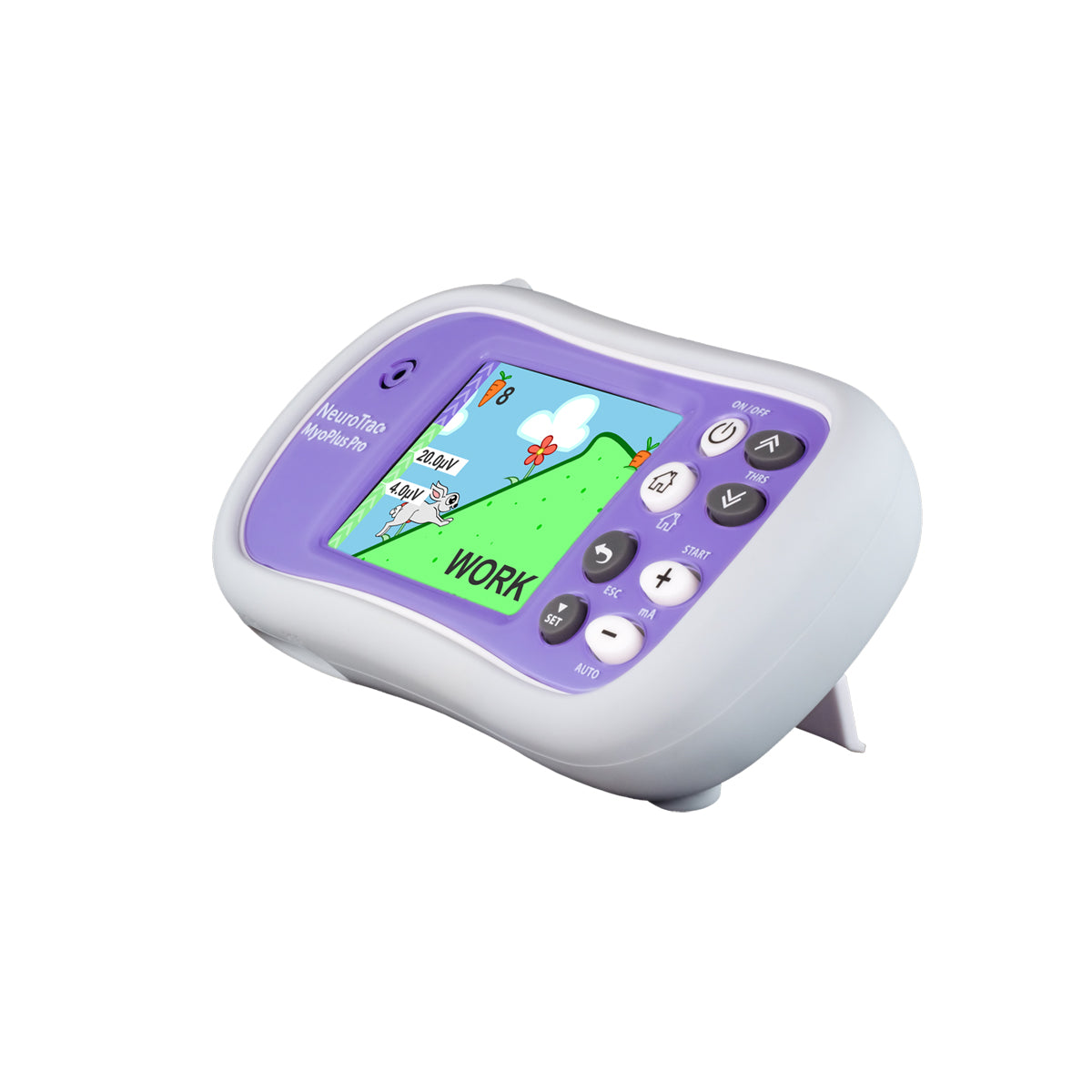

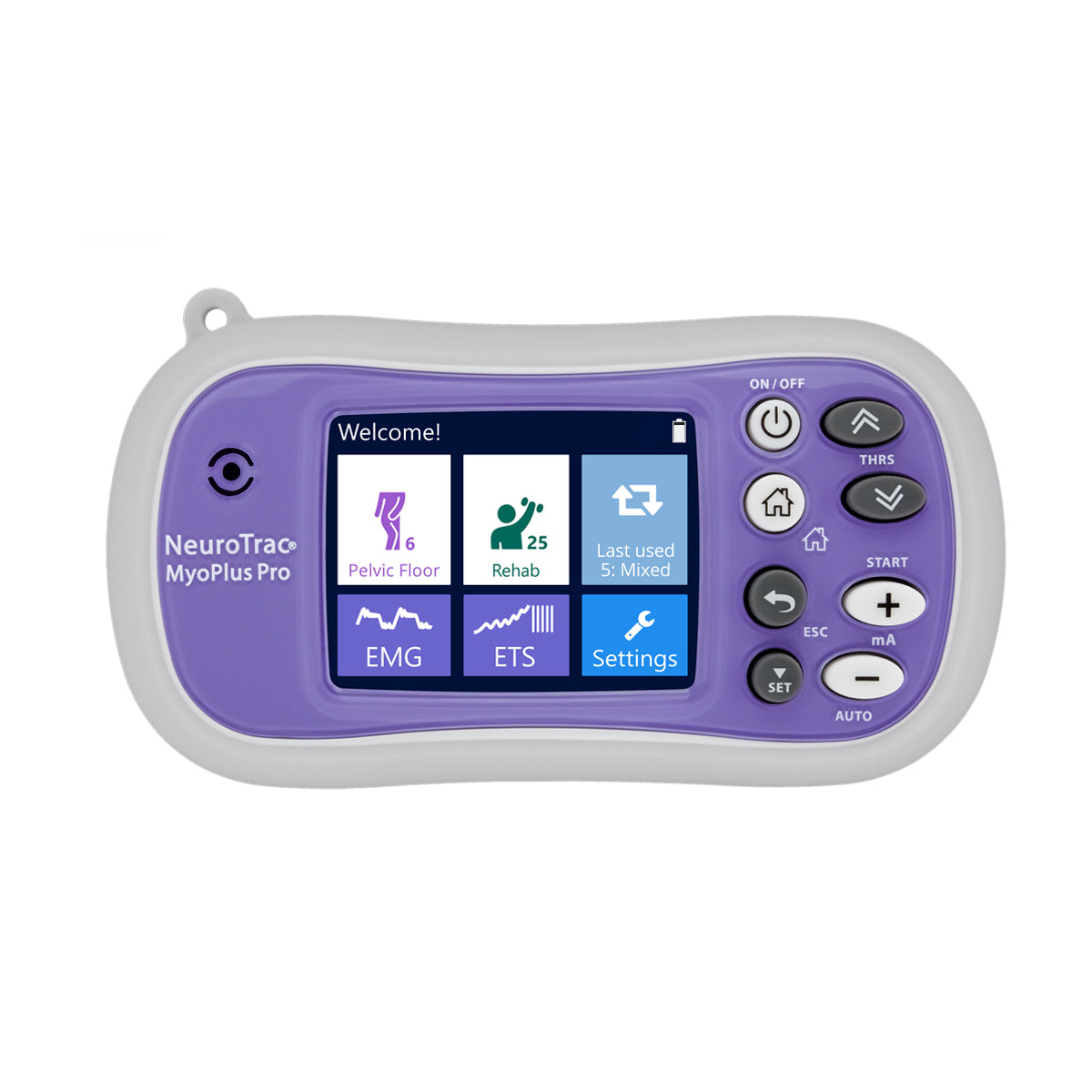

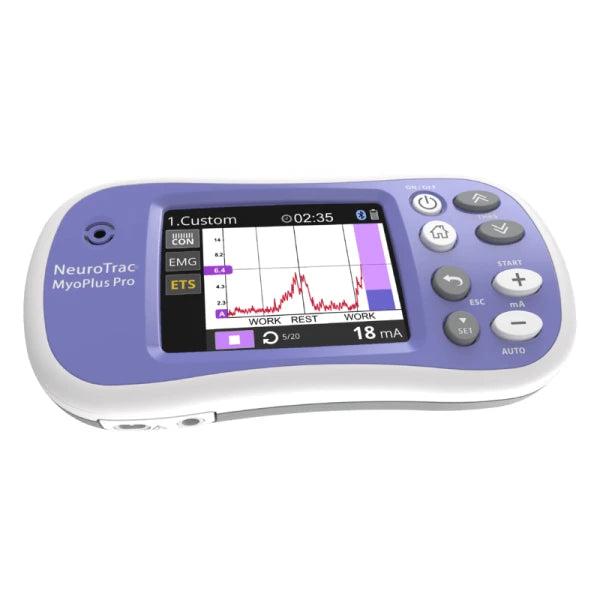

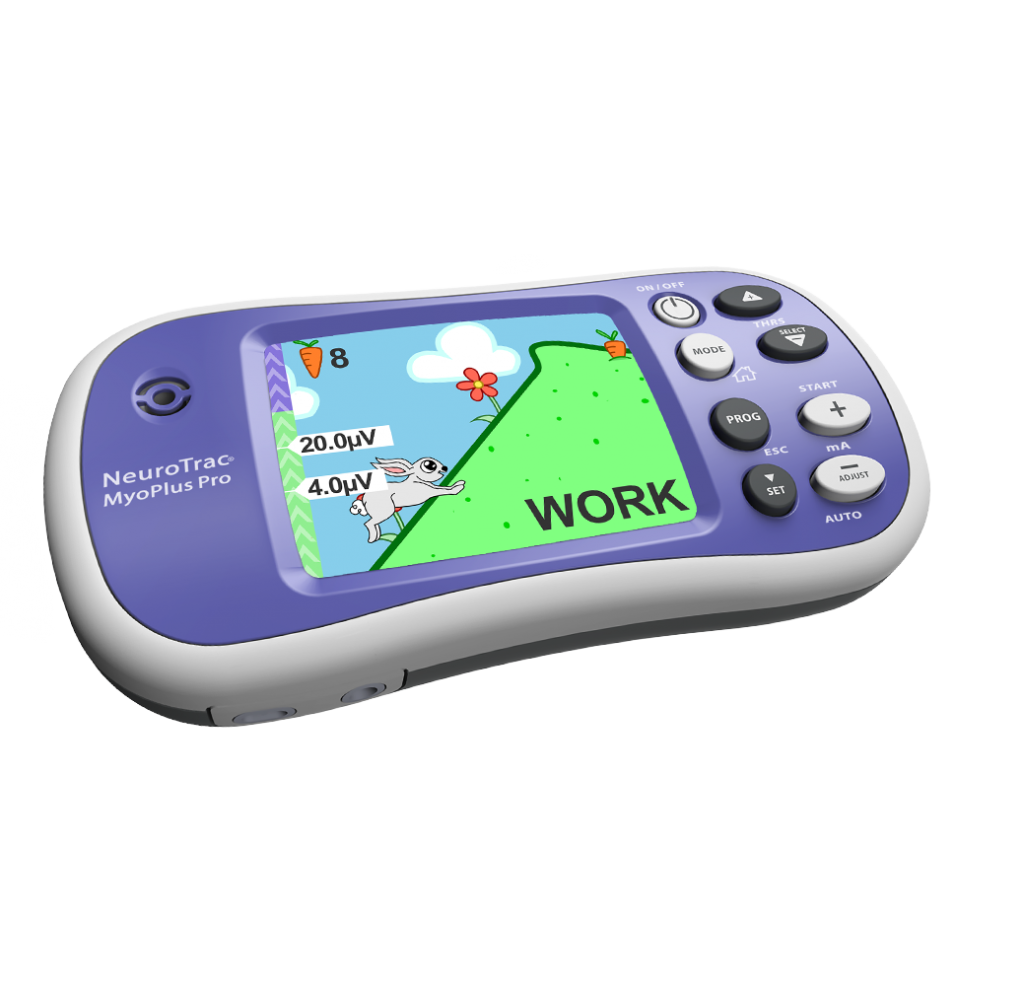

NeuroTrac® MyoPlus Pro

What the Myoplus Pro be used for:

Incontinence: The NeuroTrac MyoPlus Pro effectively addresses a range of conditions including pelvic pain reduction, treatment of stress, urge (OAB), mixed urinary incontinence, as well as faecal incontinence.

Rehabilitation: The NeuroTrac MyoPlus Pro offers specialized programs for post-stroke and paresis rehabilitation, post-multiple sclerosis rehabilitation, as well as reducing back and patellofemoral pain.

Wellness: NeuroTrac MyoPlus Pro includes non-medical programs that cater to various pelvic floor needs such as warm-up, workout, endurance, vascularization, and sensation improvement of pelvic floor muscles, as well as toning and relaxation of these muscles. Additionally, there are general programs available for muscular warm-up, strengthening, toning, metabolism improvement, vascularization, and massage purposes.

The unit has a range of pre-set programs for pelvic floor (22 programs) and neuromuscular rehabilitation (25).
2 STIM custom programs where up to 5 phases can be set-up per each programs, each phase of any STIM type: (continuous, modulated, work/rest).

• 5 Passive and Active custom programs where up to 5 phases can be set-up per each programs, each phase of any type: EMG, ETS or STIM (continuous, modulated, work/rest).
• 2 STIM custom programs where up to 5 phases can be set-up per each programs, each phase of any STIM type: (continuous, modulated, work/rest).
• 2 ETS and 2 EMG custom programs, each programs has one phase. These programs are designed for single phase simple biofeedback or ETS protocols.

EMG

• 1.0 Single channel EMG
• 1.1 EMG Range: 0.2 to 2000 μV RMS (continuous)
• 1.2 Sensitivity: 0.l μV RMS
• 1.3 Accuracy: 4% of μV reading +/-0.3 μV at 200 Hz
• 1.4 Selectable Bandpass filter – 3db Bandwidth. ( a. Wide: 18 Hz +/- 4 Hz to 370 Hz +/- 10% – Reading below 235 microvolts 10 Hz +/-3 Hz to 370 Hz +/- 10% – Reading above 235 microvolts) ( b. Narrow: 100 Hz +/- 5% to 370 Hz +/- 10%)
• 1.5 Notch filter: 50 Hz (Canada 60Hz) – 33 dbs (0. 1% accuracy)
• 1.6 Common Mode Rejection Ratio: 130 dbs Minimum @ 50 Hz
• 1.7 Work / Rest periods: 2-99 seconds
• 1.8 Number of Trials: 2-99

NMES, TENS and ETS

• 2.1 Single channel Stimulator
• 2.2 Amplitude: 0-90 mA into 500 Ohm load – actual mA will tend to be less than indicated due to Electrode impedance: at 1000 Ohms load (Electrodes in poor condition) the maximum will be limited to 75 mA, at 1500 Ohms load the maximum will be limited to 50 mA.
• 2.3 Type: Constant current, maximum output voltage 70 Volts +5 / -10 Volts
• 2.4 Waveform: Symmetrical, rectangular, bi-phasic with net zero DC current
• 2.5 Pulse width selection: 50-330 μS (10% accuracy)
• 2.6 Pulse rate selection: 2-100 Hz (5% accuracy)
• 2.7 Work / Rest periods: 2-99 seconds
• 2.8 Time 1 – 99 minutes
• 2.9 Ramp up time: 0.1 – 9.9 seconds
• 2.10 Preset and user programmable treatment Programs
• 2.11 Automatic output shut off with detection of open electrode above 10 mA (+/- 2mA).

Other Specs

• Dimensions: Length 150 mm, Width 89 mm, Depth 35 mm.
• Weight: MyoPlus Pro device: 140g (without batteries).
• 4x AAA Batteries
• Storage Temp: -25 to +70 degrees Centigrade. 15-93% Humidity.
• Expected service life: 5 years. Careful use and maintenance extends the life of the unit over the service life limit.

• Treatment of the Hemiplegic Shoulder (Stroke) through Biofeedback: Case Study
• F.E.S. in Stroke
• Stress Urinary Incontinence
• Stress Urinary Incontinence, using EMG Triggered Stimulation
• Incontinence Case Reports
• General Pain Relief with TENS
• Prolapse: Pelvic Floor Muscle Training for Women

Manuals

• Neurotrac MyoPlus Pro Operators Manual

• 4 x AAA Batteries

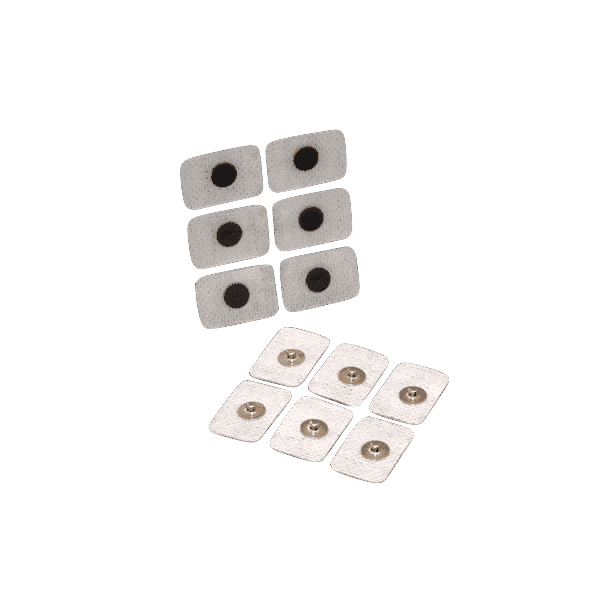

• 2 x Electrode Leads
• 1 x Reference Lead
• 1 x Operators Manual
• 1 x Quick Start Instructions
• 1 x Carry Case
• 1 x Protective Case / Stand with stylus
• 1 x NeuroTrac® PC Software Bluetooth Kit
