Any practitioner or clinic owner who owns a STORZ Radial Shockwave device is familiar with applicators, also known as shockwave transmitters. But far too many practitioners stick with the two or three applicators that came standard with their shockwave device, never realizing the full potential of what’s available. The truth is, STORZ Medical offers a diverse range of specialized transmitters engineered to enhance precision, target different tissues more effectively, and increase your patients treatment outcomes using radial pressure wave therapy. If you only using the applicators you started with, you’re leaving powerful treatment possibilities with your Radial Shockwave untapped.
When it comes to radial shockwave therapy, using the right transmitter can make all the difference in treatment outcomes. Think of it like using a drill—while a standard slot bit can handle some jobs, it won’t be effective for every task. A full set of drill bits and attachments unlocks the tool’s true potential. The same principle applies to radial shockwave therapy: having a comprehensive range of transmitters allows for precise, targeted treatment and optimal therapeutic results.
STORZ MEDICAL stands out in the shockwave industry by offering the most extensive selection of radial pressure wave transmitters, each designed for specific clinical applications. Unlike most competitors that provide only a limited range, STORZ equips practitioners with the tools needed to customize treatments for each patient. A one-size-fits-all approach simply doesn’t work when addressing complex musculoskeletal conditions.
The right transmitter ensures proper energy distribution, ideal depth penetration, and precise tissue targeting, making treatments both effective and comfortable for the patient. Without this variety, clinicians risk using the wrong tool for the job—akin to trying to drill through concrete with a wood drill bit. By offering a broad selection of applicators, STORZ empowers practitioners to maximize therapeutic outcomes.
In this guide, we’ll explore the full range of STORZ MEDICAL radial shockwave transmitters, their specifications, and their best applications in clinical practice. Whether you're treating deep tendon injuries, myofascial pain, or superficial trigger points, selecting the right applicator is key to unlocking the full power of shockwave therapy.

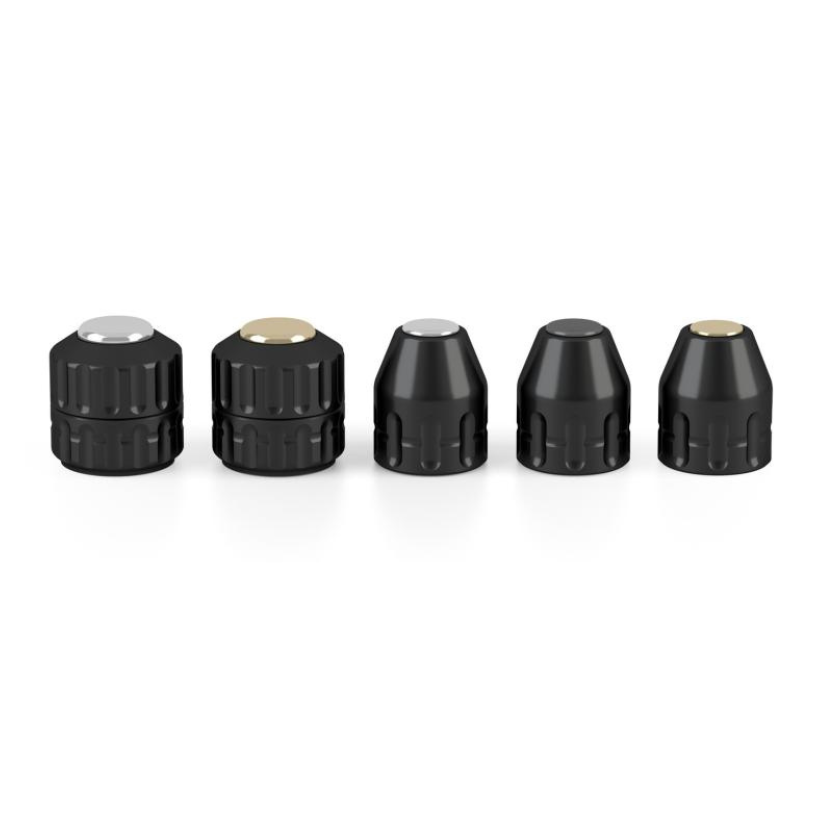

STORZ MEDICAL Applicator Guide
Now that we’ve covered the importance of having a range of transmitters at an arms reach, let’s dive into the options available so you see which applicators would compliment or enhance your treatment protocols. Remember, each applicator is designed for a specific purpose, helping you fine-tune treatments and achieve the best possible results. Here’s a look at the different transmitters and how they can take your shockwave therapy to the next level.
Note: For those who own the Masterpuls ONE (MP1) radial shockwave device, applicators are limited to a specific range of transmitters designed exclusively to fit the Sparrow Handpiece. These include the D20-S, R15, C15, DI15, and D20-T. Unlike other STORZ Medical and Chattanooga RPW devices—including the STORZ Masterpuls Line, Masterpuls Ultra, D-Actor and Duolith RSW devices—which support a broader range of applicators, Masterpuls ONE users must purchase transmitters specifically made for the Sparrow Handpiece. These will be indicated on the applicator page.
STORZ R15 Transmitter
The R15 transmitter is considered the “standard” transmitter. It is included in all radial pressure wave systems. This is the most trusted applicator as and used the most when treating tendinopathies and trigger points. We have heard a clinician once refer to this transmitter as “If I were stuck on a deserted island and can only have one applicator, it would be the R15". This would be the most used applicator if you were in a general clinic setting.
- Application: Any type of Enthesopathy
- Size of Applicator: 15 mm
- Penetration: Depth 0 – 30 mm
- Intensity Level: 6 / 10
- Compatible version for Masterpuls ONE
STORZ DI15 Transmitter
The Di15 also known as the Deep Impact 15 (15 mm diameter) which is also known as the GOLD tip applicator amongst many therapists can be described as the big brother to the R15. The DI15 packs an extra punch over the standard R15. This is helpful for deep lying structures, chronic conditions or anywhere where you need a higher-energy application. I.e. with larger clients or athletes.
- Application: Any type of Enthesopathy
- Size of Applicator: 15 mm (Gold Tip)
- Penetration: Depth 0 – 50 mm
- Intensity Level: 8 / 10
- Compatible version for Masterpuls ONE
STORZ C15 CERAma-X® Transmitter
The C15 CERAma-X® Transmitter delivers a snappier, more intense energy output compared to the standard DI15, making it an excellent choice for patients with a higher pain threshold. Its ceramic-based design enhances energy transmission, providing greater efficiency and deeper penetration for stubborn, chronic conditions. This applicator is particularly effective for treating deep gluteal pain syndrome, tendinopathies, and other high-energy applications where a more focused and powerful approach is needed. Comparable to the DI15 transmitter, the C15 is ideal for deep-seated chronic disorders that require intense, high-energy treatments.
- Application: Any type of Enthesopathy
- Size of Applicator: 15 mm (Ceramic Tip)
- Penetration: Depth 0 – 30 mm
- Intensity Level: 9 / 10
- Compatible version for Masterpuls ONE
F15 – White Soft Focus Transmitter
If the Di 15 is the big brother to the R15 then the F15 or White Soft Focus Transmitter can be considered the little brother to the R15. It is the same 15mm in diameter but with a soft tip applicator to treat high sensitivity areas like the cervical spine including tension headaches and cervical muscle strain, fascial muscles treating TMJ with lower energy and Superficial Pain Regions where pain is close to the surface. This is a must have applicator in any practice that is using Radial Shockwave!
- Application: Superficial Pain Regions, Facial Muscles (TMJ), Cervical Spine, treatments where sensitivity is an issue
- Size of Applicator: 15 mm (White Soft Tip)
- Penetration: Depth 0 – 30 mm
- Intensity Level: 2 / 10
STORZ ATLAS Soft Tip Transmitter
When treating tender, bony or highly sensitive area with Radial shockwave, patient comfort and precision is key. Unlike traditional hard-tipped transmitters which may cause discomfort when applied to delicate structures, the silicone tip to offer gentle yet effective energy transmission ensuring a comfortable treatment in ears such as Cervical spine, Fibromyalgia-related trigger points, chronic muscle tightness and other sensitive / painful areas.
- Application: Sensitive areas such as lateral epicondylitis, cervical spine pain, superficial Pain Regions, Facial Muscles (TMJ), Cervical Spine.
- Size of Applicator: 15 mm (Silicone Soft Tip)
- Penetration: Depth 0 – 10 mm
- Intensity Level: 1 / 10
STORZ B15 "White Tip" Transmitter
The B15 "White Tip" transmitter is designed for gentle yet effective shockwave therapy, making it ideal for treating highly sensitive areas. It is particularly useful for addressing conditions such as base of thumb osteoarthritis, where the adductor pollicis muscle shortens, or for alleviating jaw tension caused by masseter muscle dysfunction in cases of skull-jaw imbalance.
What sets the B15 apart from other transmitters is its softer shock transmission surface, which reduces intensity while maintaining therapeutic effectiveness. Unlike alternative applicators, the B15 lacks a booster effect, allowing for a more controlled and comfortable treatment experience. Clinicians often choose this transmitter for delicate musculoskeletal conditions where precision and patient comfort are essential.
- Application: Facial Muscles (TMJ, trigger points in the cervical spine muscles, hands, and smaller sensitive muscle groups
- Size of Applicator: 15 mm (round white tip)
- Penetration: Depth 0 – 40 mm
- Intensity Level: 3 / 10
Storz Ro40 Beam Shockwave Transmitter
The Ro40 Beam Transmitter is designed for highly targeted shockwave therapy, making it a preferred choice for treating deep-seated musculoskeletal conditions. Its slightly concave shape focuses the energy beam, allowing for a more concentrated and precise application compared to standard flat head transmitters such as the R15. This unique design enhances penetration depth, making the Ro40 particularly effective for conditions requiring focused energy delivery in densely structured tissues.
- Application: Treats any type of tendinopathies effectively
- Size of Applicator: 15 mm (Concaved Tip)
- Penetration: Depth 0 – 35 mm
- Intensity Level: 5 / 10
STORZ D-20S Transmitter
Designed for Myofascial treatments the D-20S it is included in most of the Radial Pressure wave packages from STORZ. This is often used on the muscles and connective tissue distal and proximal as well as Medial and laterally to the painful site to “smooth” out the tissues using moderate pressure. . Depending on the indication, many clinicians like using the D-20s at a slightly higher HZ and used as a scanning tool for trigger points and then holding on the located trigger point for 300-400 pulses. The D20s can be sued while passively mobilizing the joint to increase its effectiveness.
- Application: Muscle and connective tissue
- Size of Applicator: 20 mm (Silver tip)
- Penetration: Depth 0 – 50 mm
- Intensity Level: 4 / 10
- Compatible version for Masterpuls ONE
Note: The D20-S in the way it is designed to deliver energy must be changed out every 1 million pluses to prevent damage to the handpiece barrel.
STORZ D-20T (Gold Tip) Transmitter
Like the Di 15 is to the R15, the D-20T is the big brother that packs a bigger punch than the D20S. Same applications but used in higher energy applications like in Professional Athletes.
- Application: Muscle and connective tissue
- Size of Applicator: 20 mm (Silver tip)
- Penetration: Depth 0 – 50 mm
- Intensity Level: 8 / 10
- Compatible version for Masterpuls ONE
Note: The D20-T in the way it is designed to deliver energy must be changed out every 1 million pluses to prevent damage to the handpiece barrel.
STORZ D-35-S Transmitter
The D35-S is 15 mm larger in diameter than the D-20S and used where larger tissues lie in the back or leg. Also for Aesthetic protocols in enhancing skin elasticity.
- Application: Muscle and connective tissue Larger areas
- Size of Applicator: 35 mm (Silver tip)
- Penetration: Depth 0 – 60 mm
- Intensity Level: 5 / 10
Storz T10 Trigger Point Shockwave Applicator
The T10 Finger Transmitter is designed for precise targeting of trigger points and deep-seated conditions such as enthesopathies, delivering focused treatment with exceptional depth and accuracy. Its unique design allows clinicians to apply targeted pressure with greater control, making it an excellent choice for treating smaller, more localized areas that require high-intensity energy delivery. Whether addressing chronic musculoskeletal pain or stubborn soft tissue dysfunction, the T10 ensures effective and efficient therapy, optimizing patient outcomes.
- Application: Trigger points, target deep trigger points, Enthesopathies
- Size of Applicator: 10 mm Trigger point transmitter
- Penetration: Depth 0 – 40 mm
- Intensity Level: 6 / 10
STORZ Medical Transmitter Sets
STORZ PERI-ACTOR (Fascial Treatment) Set
Fascial dysfunction is a common yet often overlooked contributor to chronic pain, restricted mobility, and muscular imbalances. Traditional manual techniques can be effective, but they require extensive time and effort. The PERI-Actor transmitters assists in releasing fascial tension, stimulate circulation, and improve overall movement quality. By attaching these to a STORZ radial Shockwave device, the therapists hands are spared the constant pressure into the joints. Let the tools do the heavy lifting.
The Peri-actor Treatment tools contain a set of 4 tools along with a transmitter head with a quick-change function to allow for quick and easy changing of the tips.
- Scraper: Treatment of all fascia on the musculoskeletal system
- Knuckle: Treatment of all medium-sized and large Fascia
- Sphere – Spot Treatment of Fascia
- Scoop – Treatment at or under bone edges (i.e. scapula)
STORZ SPINE-ACTOR (Fascial Treatment) Set
When it comes to treating paravertebral muscle dysfunction and spinal conditions, precision and effectiveness are key. The SPINE-Actor transmitters from STORZ MEDICAL are specifically designed for targeted radial shockwave therapy, offering a non-invasive solution to address muscular tension, restricted mobility, and pain in the spinal region. 3 sizes re included to treat the different sections of the spinal column muscles (Lumbar, thoracic and cervical).
The SPINE-Actor series consists of three specialized transmitters designed for radial shockwave therapy applications along the spine. Unlike standard shockwave transmitters, these are engineered with a unique shape that allows precise targeting of the paravertebral muscles without directly impacting the vertebrae.
The three available sizes provide versatility in treatment, accommodating different anatomical structures and patient needs:
- SPINE-ACTOR® 1 - 20mm span – Ideal for pinpoint accuracy in smaller or more sensitive areas.
- SPINE-ACTOR® 2 – 27.5mm span – A balanced option for general paravertebral muscle therapy.
- SPINE-ACTOR® 3 – 35mm span – Best suited for broader applications, covering larger muscle groups efficiently.
